Enwitec surge protection DC type I+II 2 MPPT, terminals
| Gyártói cikkszám: | 10012735 |
|---|---|
| Cikkszám: | 5938 |
| Darab csomagolási egységenként: |
|
| Accessory type: | Overvoltage protection |
Az árak csak sikeres regisztráció után láthatók üzleti ügyfelek számára.
- % Sale
ab 29.06.2026
Termékszám:
5938
Leírás
DC surge protection, Type I+II for 2 MPPT
Successor is 12525 – Enwitec DC surge protection Type I+II 2 MPPT, terminals
Scope of application: in accordance with VDE 0100-443 and 0100-534, buildings with and without external lightning protection.

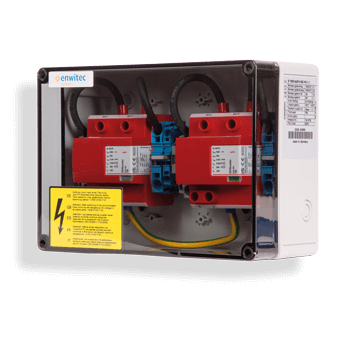

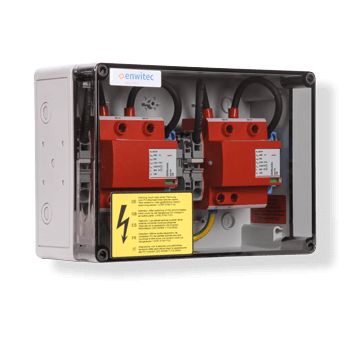

Compact, pre-assembled box with Type I+II surge arresters for the DC side. Suitable for inverters with up to 2 MPP up to 1000 V DC voltage. This surge protection box has 2 terminals with spring-loaded contacts on the input and output sides per MPP tracker. No ferrules are required here. This results in an even larger contact area and low contact resistance.
Technical data:
- Type I+II surge arrester element for 2 MPP trackers
- Input: 2 strings per MPPT with terminals 0.5–10 mm² fine-stranded copper without ferrules
- Output: 1 string per MPPT with terminals 0.5–25 mm² fine-stranded copper without ferrules
- Rated insulation voltage: 1000 V
- Rated current per string: 15 A
- Protection class: IP65
- Dimensions (WxHxD): 250 x 180 x 111 mm
-
Illő tartozékok
-

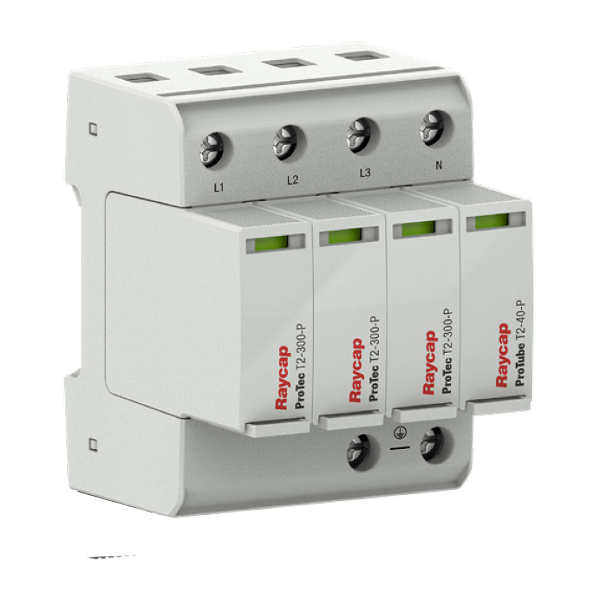

Raycap AC overvoltage protection top-hat rail type II TN-S/ TT- Gyártó típusa: Protec T2-300-3+1
