Dyness Stack 100 battery module with 5.12 kWh
| Gyártó típusa: | S 51100 |
|---|---|
| Gyártói cikkszám: | Stack 100 Batteriemodul 5,12kWh |
| Cikkszám: | 14292 |
| Darab csomagolási egységenként: |
|
| Battery type: | LFP |
| Installation location: | Indoor |
| Usable capacity: | 4.86 kWh |
| Warranty: | 10 years |
| Commercial storage type: | Modular without inverter |
Az árak csak sikeres regisztráció után láthatók üzleti ügyfelek számára.
- Új
ab 15.09.2026
Termékszám:
14292
-
-
{ "id": "1fb6b642f92f55c8b90fd4c8be006668", "item_brand": "", "item_name": "Dyness Stack 100 BDU incl. base", "item_id": "14294", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "1fb6b642f92f55c8b90fd4c8be006668" } }
-
Leírás

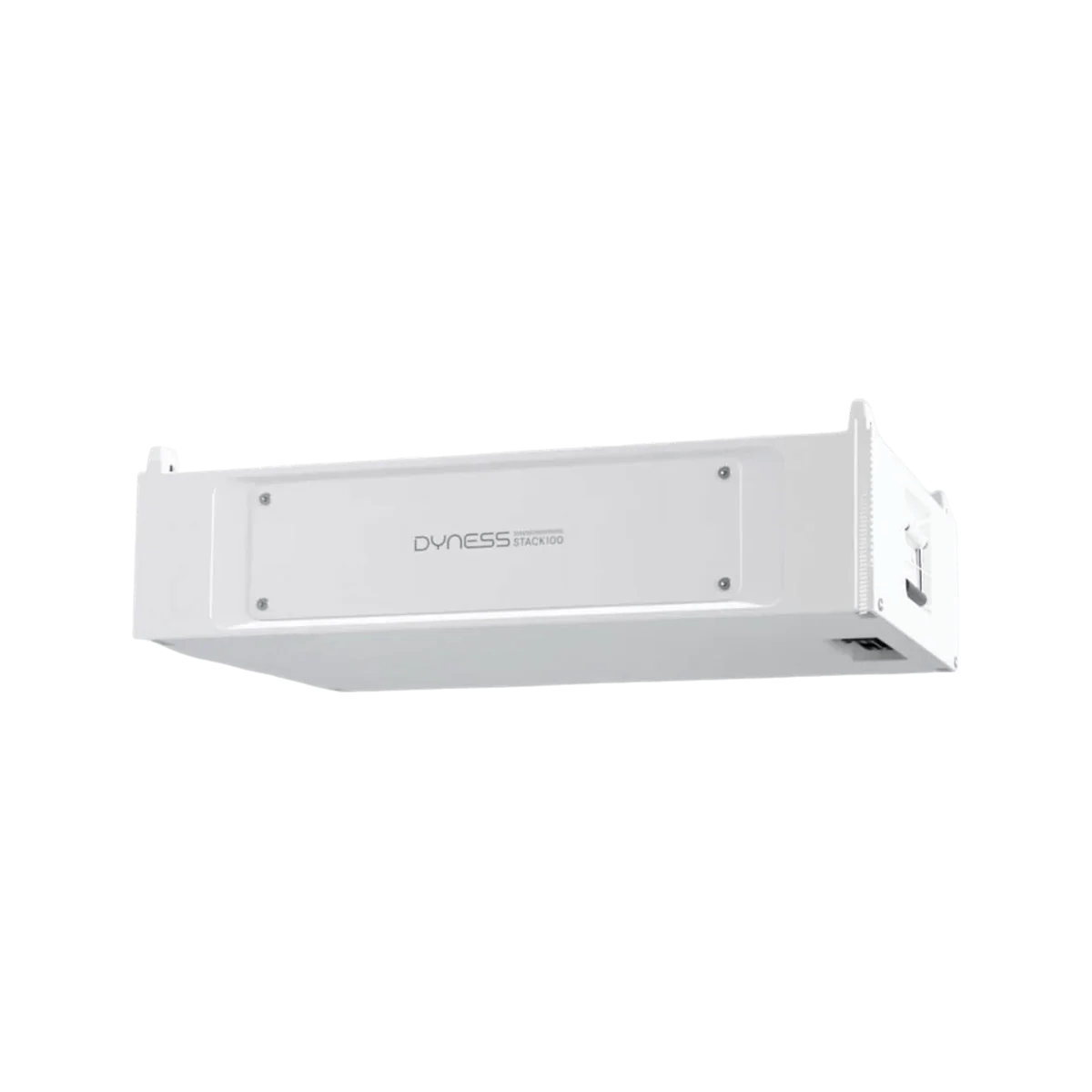

Dyness Stack100 battery module with a capacity of 5.12 kWh
The Dyness Stack100 is a modular high-voltage Battery storage system designed for commercial and large-scale domestic applications. The system offers impressive safety features thanks to modern LiFePO4 technology and an integrated fire suppression system, as well as a long service life and flexible scalability. Installation is simple and space-saving thanks to stackable design, making the storage system ideally suited to spaces with limited room.
Smallest battery tower size: 3 battery modules (15.36 kWh)
Product benefits:
- Modularly expandable from 15.36 kWh to 76.8 kWh (up to 15 modules per tower, multiple towers can be connected in parallel)
- Modern, safe and durable LiFePO4 technology
- Integrated fire extinguishing cartridge for maximum safety
- Intelligent battery management system with comprehensive protection functions

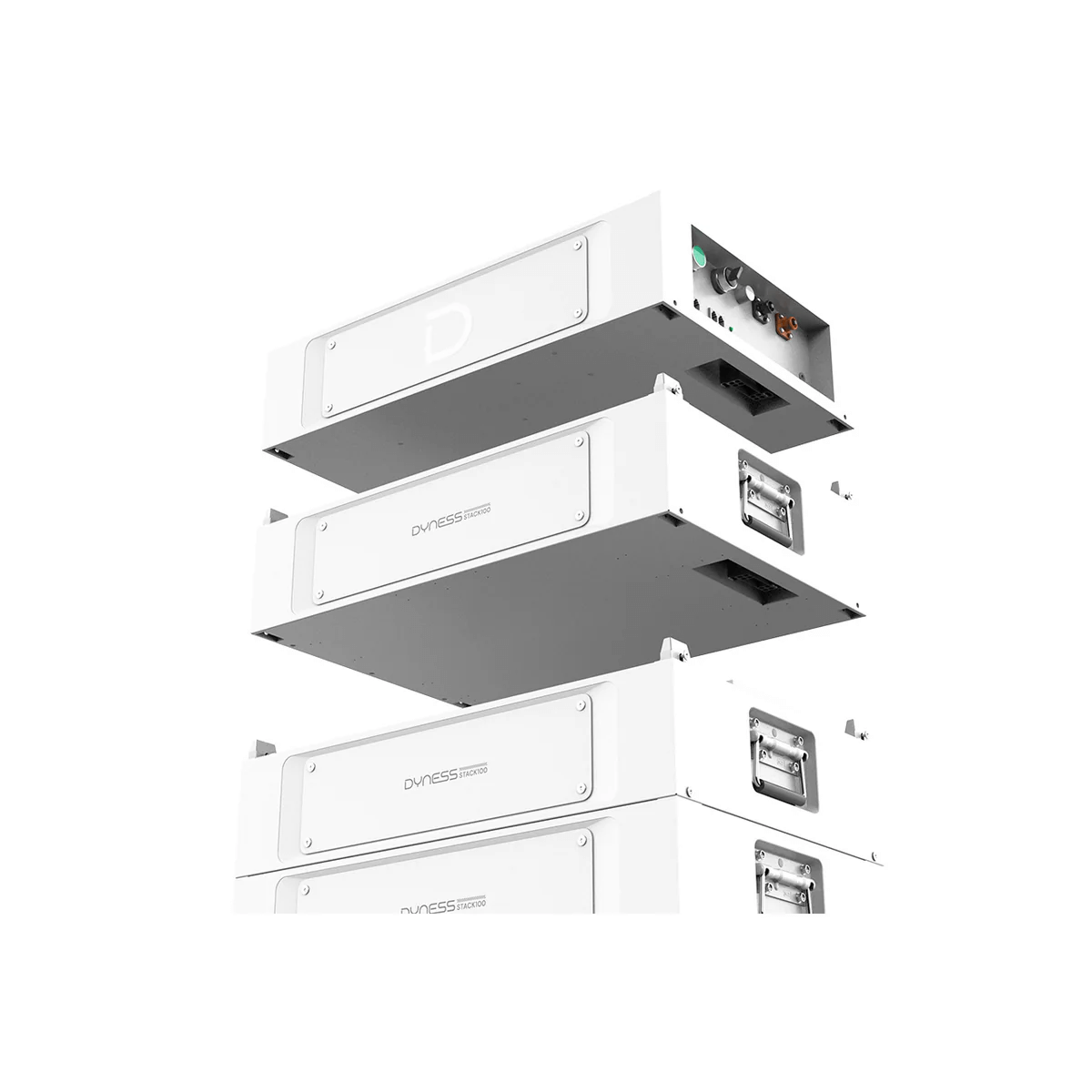

- Flexible installation (space-saving stack design, installation time ≤1 hour)
- Remote monitoring and updates via WiFi
- Low maintenance and 10-year manufacturer’s warranty
- Compatibility with numerous Inverters
Product features:
- Battery type: LiFePO4 (lithium iron phosphate)
- Single storage module: 5.12kWh (51.2V/100Ah)
- Net capacity per module: 4.86 kWh
- System capacity: 15.36–76.8 kWh (max. 15 modules per tower)
- Can be connected in parallel: Up to 12 towers (max. 921.6 kWh total)
- Operating voltage: 134–876 V (depending on number of modules)
- Usable energy: 95% Depth of discharge (DoD)
- Max. charge/discharge current: 100 A (1C), peak current: 125 A (2 min)
- Service life: >6,000 cycles or unlimited within the warranty period
- Communication: CAN / RS485 / WiFi
- Module dimensions: approx. 590x390x133.5mm, weight: 47kg

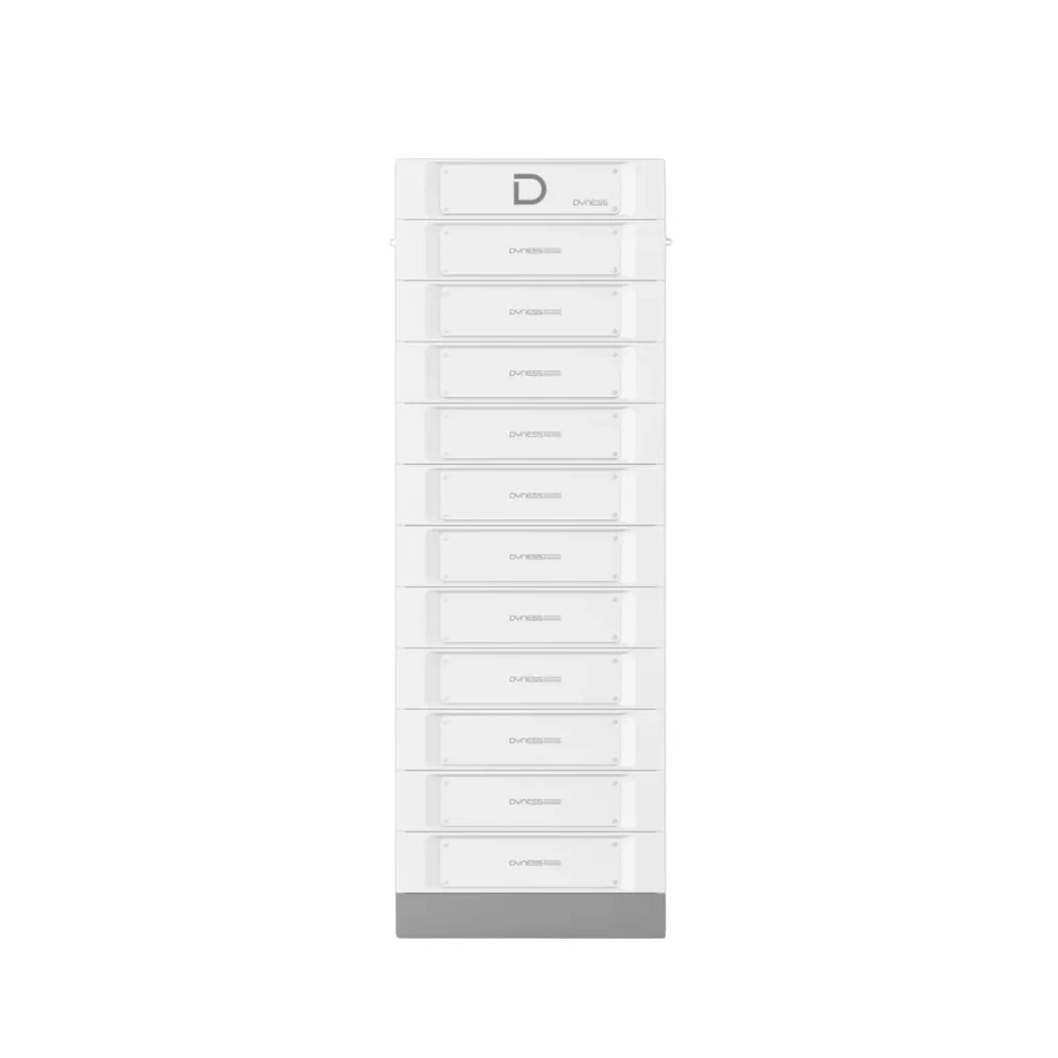

- Overall dimensions (10 modules + BDU): 590 x 390 x 1,468.5 mm, total weight: approx. 487 kg (depending on number of modules)
- Protection class: IP55
- Operating temperature: -20°C to +55°C
